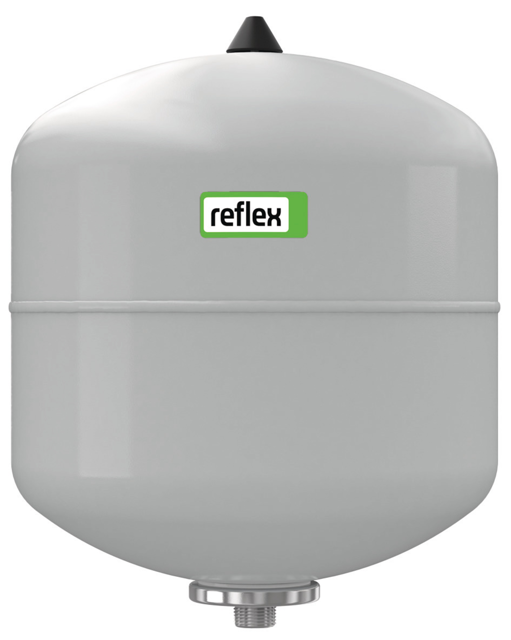

Reflex expansion vessel Reflex S 25,grey, 10 bar
Commercial data
| Article number | 8704200 |
| Price (non-binding sales price) (RSP) | 105.50 / Pcs |
| Main commodity group | static vessel for heating-,solar-and cooling |
| Goods group | Reflex S |
Text of invitation to tender
Reflex S
Diaphragm expansion tank for sealed
solar, heating and cooling water
systems. Vessels are designed and
manufactured according to DIN EN 13831.
Approval according to Pressure Equipment
Directive 2014/68/EC.
durable epoxy resin coating
up to 33 litres non-replaceable bladder,
non-replaceable diaphragm for 50
- 600 litres
for antifreeze additive of at least 25 –
50 %
with threaded connections
33 litres with brackets, from 50 litres
with adjustable feets
max. permissible system temperature
120°C
max. permissible operating temperature
70°C
Technical data
| Width (mm) | 290 |
| Height (mm) | 555 |
| Weight (kg) | 4.14 |
| Depth (mm) | 290 |
