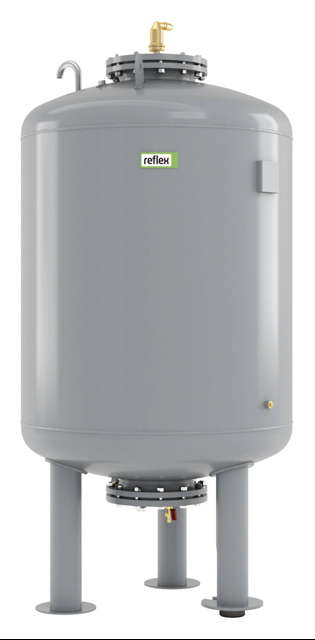

Reflex pump contr. press. Variomatprimary vessel VG 1500, 6 bar
Commercial data
| Article number | 8600905 |
| Price (non-binding sales price) (RSP) | 6,410.00 / Pcs |
| Main commodity group | Pump-controlled pressurisation systems |
| Goods group | Variomat, Variomat Giga |
Text of invitation to tender
Variomat VG
Diaphragm expansion vessel for Variomat
one or two-pump controlled pressure
maintenance stations, unpressurised,
closed to atmosphere. Approval according
to the EU Pressure Equipment Directive
2014/68/EU. Built according to DIN EN
13831 and VDI 4708 or AD
2000.Floor-standing with foot
structureReplaceable full diaphragm
- compliant with DIN EN 13831Exterior
plastic-coatedWith dipstick tube
degassingincluding welded side socket
for connection of a bladder rupture
detectorbasic vessels VG incl.
transducer for level sensing
Technical data
| Width (mm) | 2100 |
| Height (mm) | 1350 |
| Weight (kg) | 320.00 |
| Depth (mm) | 1200 |
